PV&Energy Storage

HI-3~6K-SL

  • 3~6kW
  • Single Phase
  • Low Voltage

Technical Parameters

Product Video

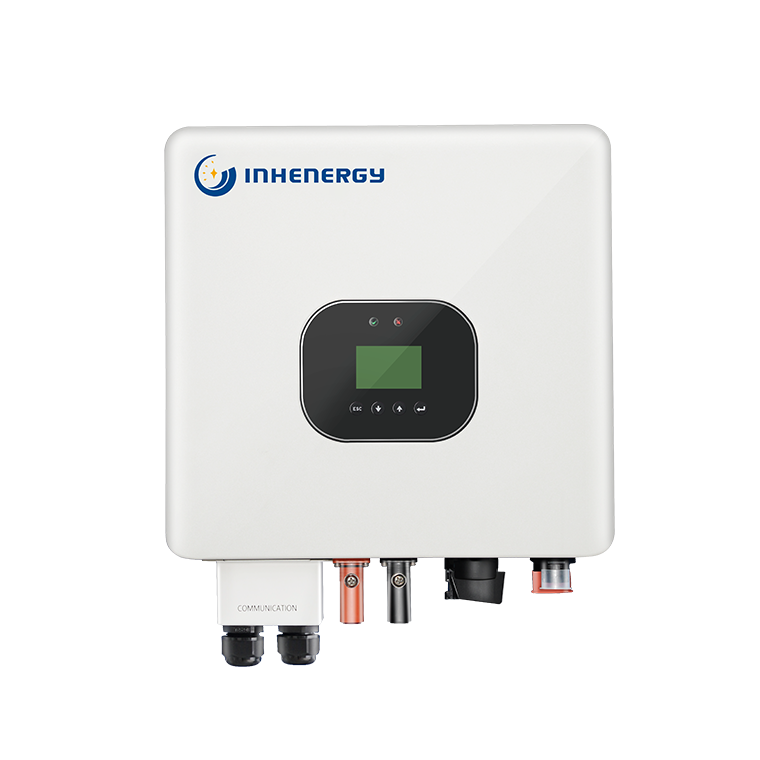

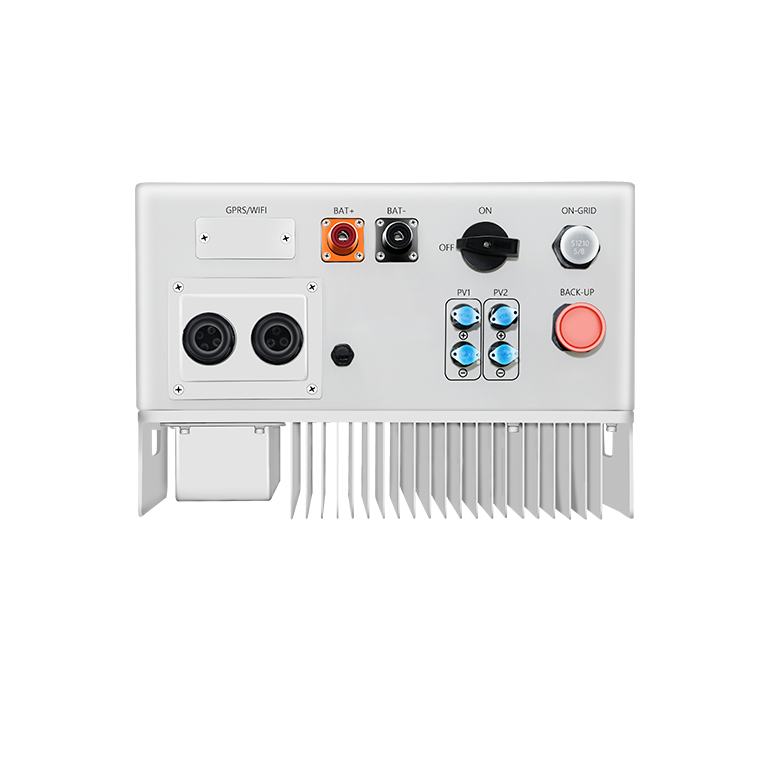

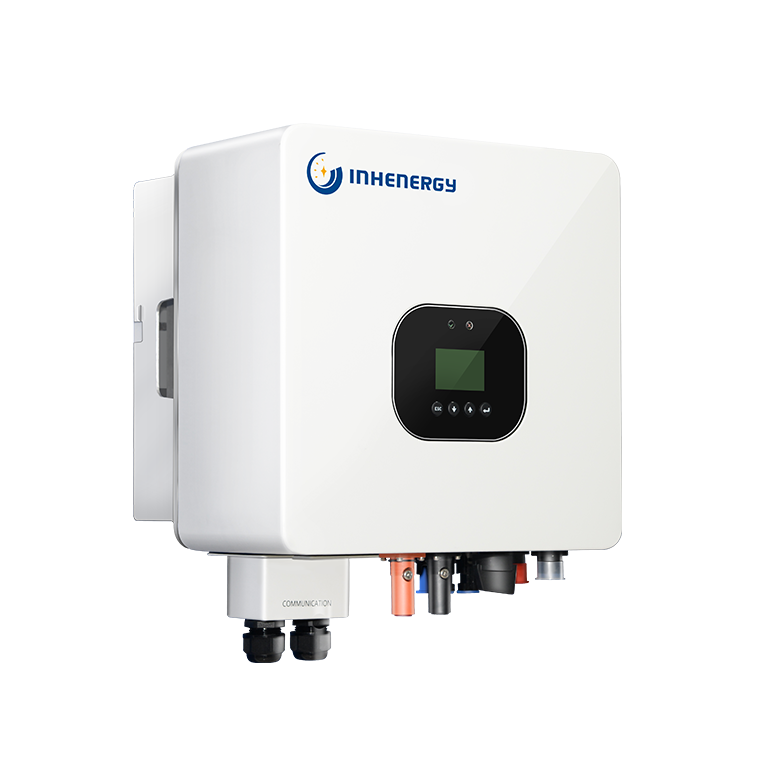

Inhenergy HI-3-6K-SL SERIES inverter, ranging from 3 to 6kW, compatible with a large range of low voltage batteries, weight only 20kg, easy to install, support up to 6 inverters parallel. The uniqueness of the Inhenergy Hybrid Inverter lies in its intelligent design and excellent performance, which can meet the needs of both photovoltaic and energy storage systems.


  • FriendlySimpleDesign.png

    Friendly & Simple Design

  • ReversePolarityProtection.png

    Reverse Polarity Protection

  • Seamlessswitchingunder10ms.png

    Seamless switching under 10ms

  • DualMPPT,supportupto30APVinput.png

    Dual MPPT, support up to 30A PV input

  • IntelligentTOUmode.png

    Intelligent TOU mode

  • Naturalheatdissipation,lownoiselevel.png

    Natural heat dissipation, low noise level

  • IP65protectionlevel.png

    IP65 protection level

Technical Data


Technical DataHI-3K-SLHI-3.6K-SLHI-4K-SLHI-5K-SLHI-6K-SL
PV String Input Data




Max. DC input power7000W7000W9000W9000W9000W
Max. DC input voltage

550V

Nominal input voltage

360V

MPPT working voltage range

90V-550V

Number of independent  MPPT/strings per MPPT

2/1

MPPT max. current

15A/15A

Start-up voltage

100V

AC Output/Input Data (On-grid)




Nominal output apparent power3000W3600W4000W5000W6000W
Max. output apparent power3300VA4000VA4400VA5500VA6600VA
Nominal output voltage

230V/180V-280V

Nominal output frequency

50Hz, 60Hz/±5Hz

Rated output current13A15.6A18A22A26A
Max. output current14A17A19A24A29A
Power factor

-0.8~+0.8(adjustable)

THDi

<3%(Nominal Output)

Grid system pattern

L+N+PE

Max. apparent power from utility grid6000VA7200VA8000VA10000VA12000VA
Max. AC current from utility grid26A31.5A35A43.5A48A
Back-up Output Data (UPS)




Nominal output apparent power3000VA3600VA4000VA5000VA6000VA
Max. output apparent power4000VA,10s4600VA,10s5000VA,10s6000VA,10s7000VA,10s
Nominal output voltage

208V,220V,230V,240V

Nominal ouput frequency

50Hz/60Hz

Output THDV

<3%

Automatic switch time

<10ms

Battery Input Data




Battery type

Li-Ion/Lead-acid

Battery voltage range

42V~59V

Max. charging/discharging current80A80A100A100A100A
Charging strategy for Li-Ion battery

Self-adaption to BMS

Charging strategy for Lead-acid battery

Three-stage

Effciency




Max. effificiency

98%

Europe efficiency

97.5%

Max. battery to load efficiency

94%

Protection




Anti islanding protection

Yes

Insulation impedance protection

Yes

RCD detection

Yes

PV reverse polarity protection

Yes

Output over voltage protection

Yes

Output over current protection

Yes

General Data




Dimensions(L/W/H)in mm

375/250/363

Weight

20kg

Noise

<25dB

Operation temperature range

-25℃~60℃

Heat dissipation mode

Natural

IP Class

IP 65

Features




LCD display

Yes

Communication interface

WiFi/4G/USB/CAN/RS485

Standards

EN 62109-1/EN 62109-2/EN 62477-1/EN IEC 61000-6-1/EN IEC 61000-6-3/ CEI 0-21/NTS-631/RD647/UNE 217001/UNE 217002/VDE 4105/IEC 61727/ IEC 62116/IEC 61683/EN 50549-1/G98/ G99/NRS 097/UTE C 15-712/ DIN V VDE V 0126
