PV&Energy Storage

Hybrid Inverters (US)

5~12kW

Technical Parameters

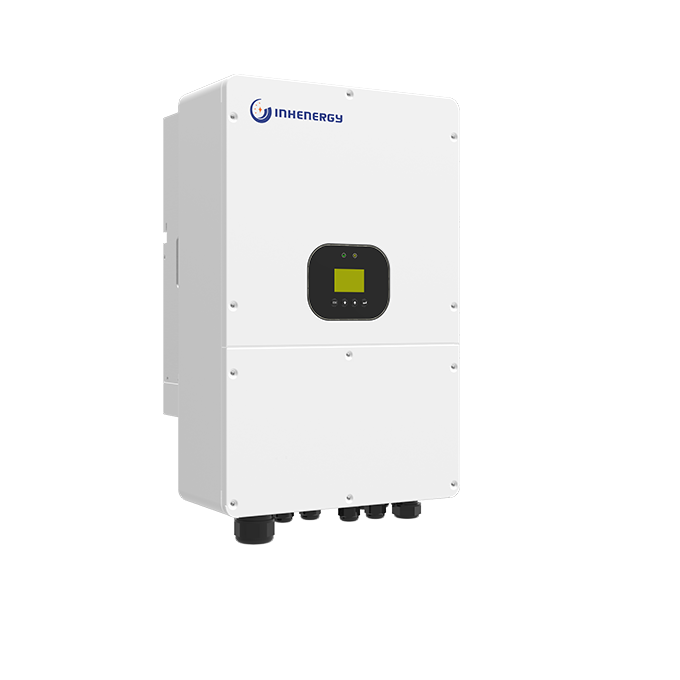

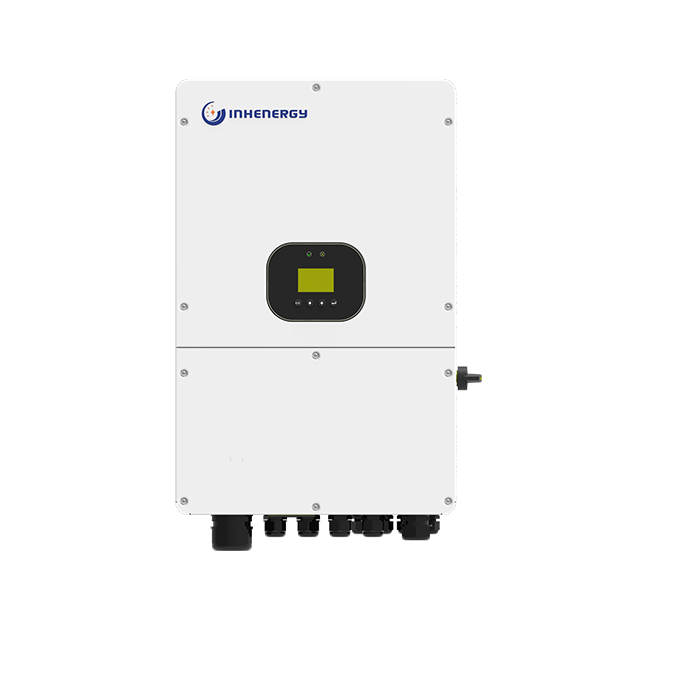

The INHENERGY hybrid inverter (3.3-60kW) is certified to US standards, meeting local requirements for residential and C&I applications. Its defining feature is the support for 120/240V split-phase systems, making it perfectly compatible with standard home electrical systems to power various household appliances. Coupled with broad battery compatibility, these inverters are an ideal solution for customers seeking energy independence and reliable backup power.

For more details about the complete product portfolio, please visit: www.inhenergy.com

Core Value
Future proof battery ready
Low initial investment
Wide DC working voltage range
NEMA Type 4 waterproof
User Friendly
Compact design for one person installation
Leading Functions
UPS function, 10ms transition
Smart Meter Integrated
System Flexibility
Support lithium and lead-acid battery
IP66 Waterproof design, indoor& outdoor use.

RELATED SOLUTIONS

Energy Storge System Solution

Inhenergy's PV system and storage unit allows you to enjoy stable and low-cost electricity all day long. The solar panels create a lot of power during the day and store it in the batteries, so you can use it at night. No more power worries.

LEARN MORE

Model Number	HI-5K-DL	HI-6K-DL	HI-8K-DL	HI-10K -DL	HI-12K-DL
PV String Input Data
Max. DC input power	7.5kW	9kW	12kW	15kW	18kW
Max. DC input voltage			550V
Nominal input voltage			360V
MPPT working voltage range			90V-550V
Number of independent MPPT/strings per MPPT	2/1	2/1	4/1	4/1	4/1
MPPT max. current	20A*2	20A*2	20A*4	20A*4	20A*4
Start-up voltage			100V
AC Output/Input Data (On-grid)
Nominal output apparent power	5kW	6kW	8kW	10kW	12kW
Max. output apparent power	5.5kVA	6.6kVA	8.8kVA	11kVA	13.2kVA
Nominal output voltage			120V/240V(Split phase), 208V(2/3phase), 230V(Single phase)
Nominal ouput freqency			60HZ/50HZ±0.2%
Rated output current	20.8/21.7A	25/26A	33/34.7A	41.6/43.4A	50/52A
Max. output current	26A	32A	42A	53A	60A
Power factor			-0.8~+0.8(adjustable)
THDi			<3%(Nominal Output)
Grid system pattern			Split phase,2/3 phase, Single phase
Max.apparent power from utility grid	11kVA	12kVA	16kVA	20kVA	24kVA
Max.AC current from utility grid	52A	64A	84A	106A	120A
Back-up Output Data (UPS)
Nominal output apparent power	5kVA	6kVA	8kVA	10kVA	12kVA
Max. output apparent power	5.5kVA	6.6kVA	8.8kVA	11kVA	13.2kVA
Nominal output voltage			120V,208V,220V,240V
Nominal ouput frequency			60Hz/50Hz±0.2%
Output THDV			<3%
Automatic switch time			<10ms
Battery Input Data
Battery type			Li-Ion/Lead-acid
Battery voltage range			40V-60V
Max. charging/discharging current	100A	120A	160A	200A	240A
Charging strategy for Li-Ion battery			Self-adaption to BMS
Charging strategy for Lead-acid battery			Three-stage
Efficiency
Max. effificiency			98%
Europe effificiency			97 . 5%
Max. battery to load effificiency			98%
Protection
Anti islanding protection			Yes
Insulation impedance protection			Yes
RCD detection			Yes
PV reverse polarity protection			Yes
Output over voltage protection			Yes
Output over current protection			Yes
General Data
Dimensions(L/W/H)in mm			425/280/660
Weight			35kg
Operation temperature range			-25℃~+60℃
Heat dissipation mode			Smart cooling
IP Class			IP 66
Maximum altitude			3000m
Self-Consumption night			<3w
Topology			Transformerless
Features
LCD display			Yes
Communication interface			WiFi/4G/USB/CAN/RS485
Standards			UL 1741,CSA C22.2,UL 1699B, UL 1741SB,IEEE1547:2018,RULE21,FCC Part 15 Class B
