Smart Fault Locating
Distribution Network Smart Fault Locating Solution is one step ahead for Self-Healing Distribution Automation, in this solution Smart Sensors (Smart FCI) are installed in different part of power network to locate and report faults/transient fault in overhead/underground medium/high Voltage power network while collecting power network parameters, such as load current, outage history, and restoration time.
This solution uses smart sensors and real-time communications technologies to monitor Critical Parameters in power network at all times and provides related services to utility companies to make power network more stable and efficient.

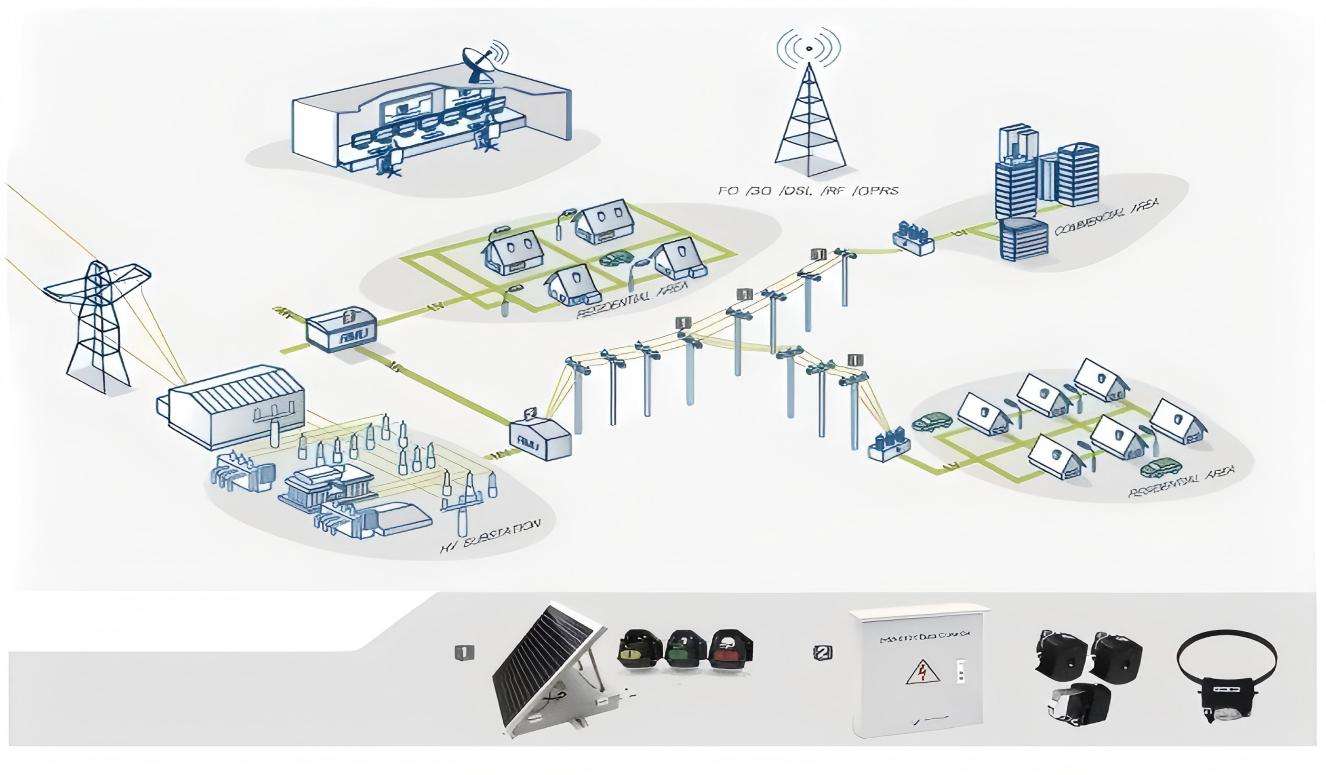

APPLICATION SCENARIO
RELATED PRODUCTS
-
IHM-6110 FCI and DCU for Underground Network SERIESIHM-6110 (Fault Circuit Indicator and data collector) has been designed based on advanced technology for underground cable to pinpoint fault location and accurately log load in any point along the electric distribution power network (faults like two-phase or three-phase short-circuit fault and single-phase earth fault). IHM-6110 is equipped with visual indication to support locating the fault at field.
IHM-6110 has been designed based on latest technology to be maintenance-free during long life. Installation process of IHM-6110 is very simple and can be done on hot line anywhere.
Data Collector(DCU) is the core element acting as gateway between FCI and Smart SCADA/DMS central system, using fiber optic to communicate with FCIs and remote communication like GPRS/3G/4G/FO with smart SCADA/DMS central system. Utility company can monitor the condition information of the line in real time and fault location of the line through smart SCADA/DMS central system with DCU.
-
High Accuracy
-
01
03
SOFTWARE SUPPORT
-
Smart AMI
The Smart AMI system integrates communication, IoT, and cloud tech to manage data collection, monitoring, and analysis. It organizes data from substations, lines, transformers, and users, enabling real-time monitoring and supporting load control, energy purchasing, and power management.
-
Diverse equipment support
-
Versatile communication methods
-
Task-based remote data collection and configuration
-
Real-time equipment monitoring
-
Varied data analysis options and reports
-
Map-integrated on-site mobile HHU
-
01
02
