IHM-RMU6 series medium voltage switchgear (24kV and below voltage level) is a SF6 insulated fully sealed maintenance-free medium voltage switchgear. Each functional unit is modular design with flexible combination and expansion of unit cabinet and shared cabinet, meeting the safe use requirements of medium voltage distribution system of 24kV and below.

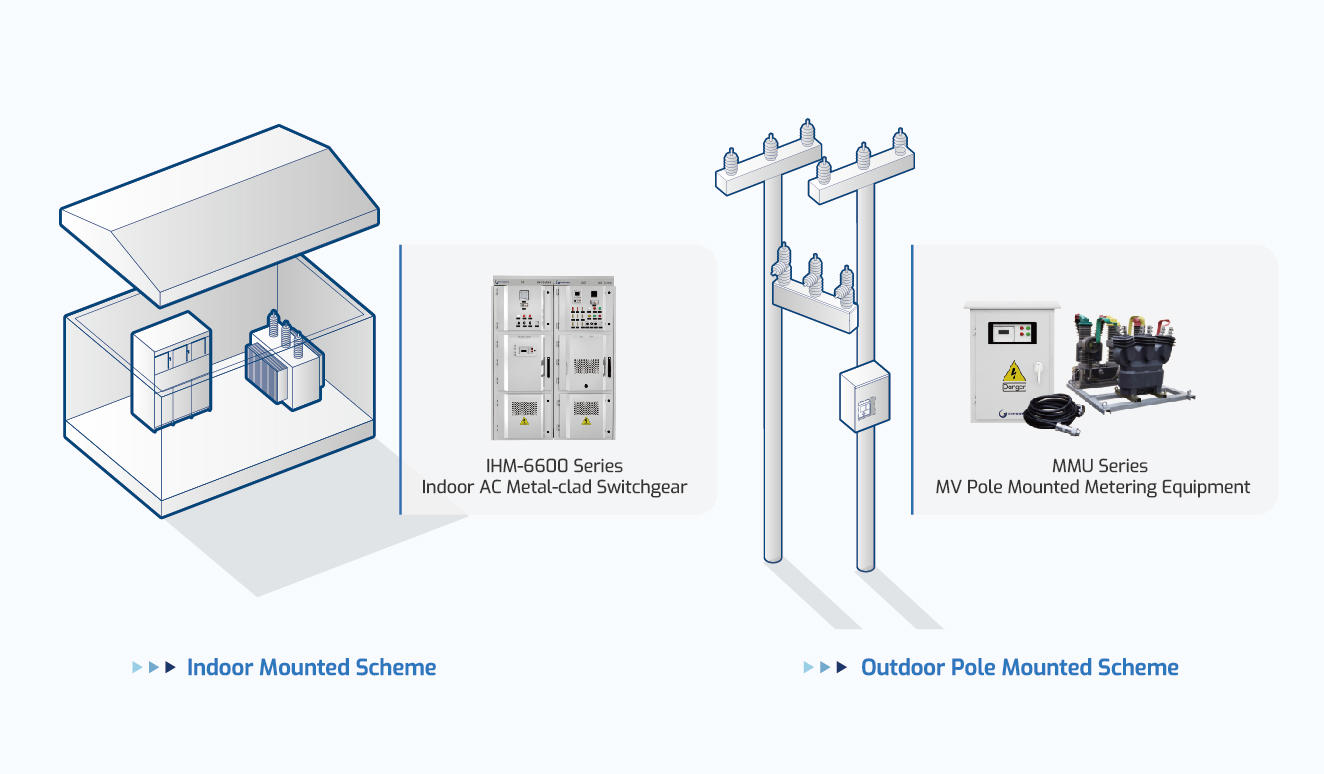

IHM-6600-KYN28 series indoor metal-clad withdrawable switchgear is a complete power distribution device for rated voltage up to 24kV(12kV, 24kV), 3-phase AC 50/60Hz,single-bus and single-bus sectionalized system.

It is mainly used for power transmission of middle/small generators in power plants; power receiving, transmission for substations in power distribution andpower system of factories, mines and enterprises, and starting of large high-voltage motor, etc.,so as to control, protect and monitor the system. The switchgear can be used with VD4 from ABB and VB2 from GE, etc., it is a power distribution device with good performance.

IHM-RMUA Air Insulated Switchgear adopts dry air as the insulating medium. The isolating switch and the arc extinguishing chamber are completely sealed in a gas tank filled with dry air. The gas tank is made of stainless steel and is automatically welded by the robot. The protection level of the gas tank reaches IP67. IHM-RMUA air-insulated switchgear does not use any greenhouse gases or harmful gases. It is compact, small , modular, and maintenance-free.

IHM-RMUA Air Insulated Switchgear consists of three types of switch module: Module V (circuit breaker unit), Module C (load break switch unit), and Module F (load break switch and fuse combination unit), which can be flexibly combined and expanded as per customer requirements.

MMU series Medium Voltage (MV) metering equipment is an integrated and complete MV metering solution, including MV switch, metering unit, metering box etc. The device is designed for MV large power users directly fed by distribution transformer at AC 50Hz/ 60Hz, 6 ~ 38kV to realize power metering at the medium voltage side of the transformer and MV load control. It has the functions of metering, billing, prepayment, remote meter reading, automatic alarm, anti-tamper, power quality monitoring and so on. It is applicable for industrial, commercial and collective enterprises to help utilities reduce commercial loss.
