PV&Energy Storage

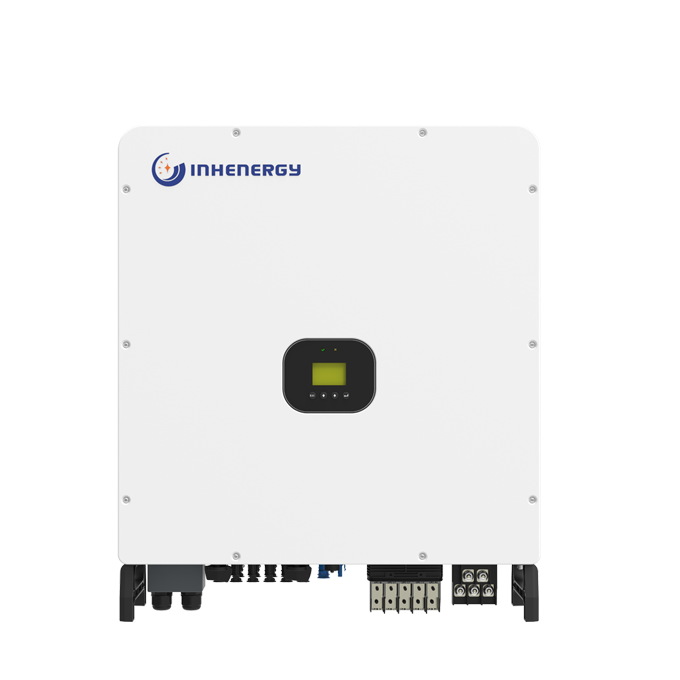

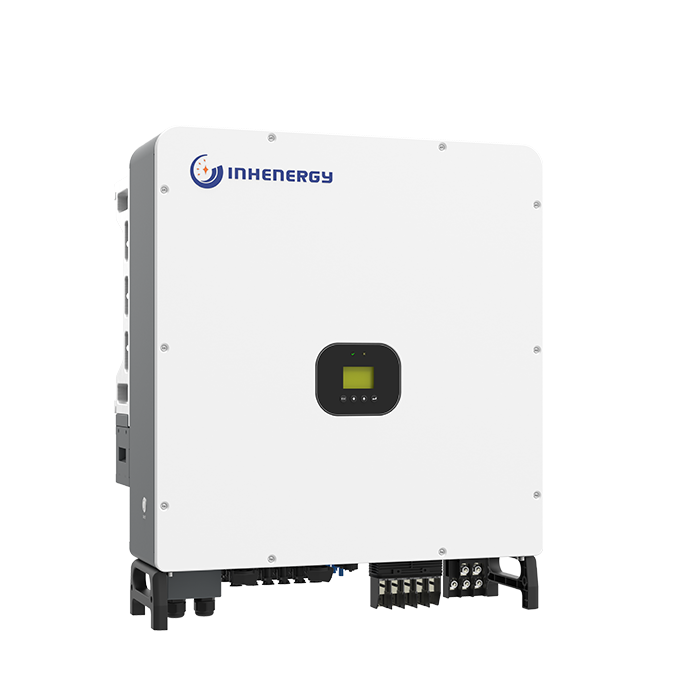

HI-29~60K-TH

  • 29~60kW
  • Three Phase
  • High Voltage

Technical Parameters

Inhenergy HI-29~60K-TH inverter, ranging from 29 to 60kW, is a new member of hybrid inverters. It is compatible with high voltage Li-Ion batteries. With its UPS function, seamless switching to the back-up mode under 10 ms , ensuring a reliable power supply.





  • CoreValue-241.png

    Core Value
    Future proof battery ready
    Low initial investment

  • HighYields-961.png

    High Yields
    DC/AC ratio up to 1.5
    Max. efficiency 98%
    Dual MPP trackers

  • SafetyandReliability-841.png

    Safety and Reliability
    Type II SPD on DC side
    Support export limitation

  • UserFriendly-143.png

    User Friendly
    Compact design for one person installation

  • SystemFlexibility-261.png

    System Flexibility
    Support lithium and lead-acid battery

Technical Data
Model NumberHI-29K-THHI-30K-THHI-40K-THHI-50K -TH

HI-60K-TH

PV String Input Data




Max. DC input power45kW45kW60kW75kW90kW
Max. DC input voltage

1100V

Nominal input voltage

600V

MPPT working voltage range

180V-1000V

Number of independent MPPT/strings per MPPT3/33/34/34/34/3
MPPT max. current45A*3 45A*3 45A*445A*445A*4
Start-up voltage/Min.operating voltage

200V

AC Output/Input Data (On-grid)




Nominal output apparent power29kW30kW40kW50kW60kW
Max. output apparent power29kVA33kVA44kVA55kVA66kVA
Nominal output voltage

400V±20%

Nominal ouput freqency

50Hz, 60Hz/±5Hz

Rated ouput current42A43.5A58A72.5A87A
Max. output current50A50A64A80A95A
Power factor

-0.8~+0.8(adjustable)

THDi

<3%(Nominal Output)

Grid system pattern

3L+N+PE

Max.apparent power from utility grid29kW*230kW*240kW*250kW*260kW*2
Max.AC current from utility grid50A*250A*264A*280A*295A*2
Back-up Output Data (UPS)




Nominal output apparent power29kW30kW40kW50kW60kW
Max output apparent power29kVA33kVA44kVA55kVA66kVA
Nominal output voltage

400V±20%

Nominal ouput frequency

50Hz/60Hz±0.2%

Output THDV

<3%

Automatic switch time

<20ms

Battery Input Data




Battery type

Li-Ion

Battery voltage range

150V-800V

Max. charging/discharging current

50A*2

Charging strategy for Li-Ion battery

Self-adaption to BMS

Efficiency




Max. effificiency

98%

Europe effificiency

97 . 5%

Max. battery to load effificiency

98%

Protection




Anti islanding protection

Yes

Insulation impedance protection

Yes

RCD detection

Yes

PV reverse polarity protection

Yes

Output over voltage protection

Yes

Output over current protection

Yes

General Data




Dimensions(L/W/H)

650/306/655

Weight

50kg

Operation temperature range

-30℃~+60℃

Heat dissipation mode

Smart cooling

IP Class

IP 66

Maximum altitude

3000m

Self-Consumption night

<5w

Topology

Transformerless

Features




LCD display

Yes

Communication interface

WiFi/GPRS/RS485

Standards

IEC 62109-1/IEC 62109-2/EN IEC 61000-6-1/EN IEC 61000-6-3/VDE AR 4105/ VDE V 0124-100/NC RfG/PSE/PTPiREE/EN 50549-1/NRS 097
